Chicago Blower Fans
Airfoil SQA Square Fans
We are proud to be one of the world's leading centrifugal fan suppliers and our SQA Square Fan is our pride and joy. The SQA Square Fan is Chicago's most popular fan because it fulfills most commercial, and general industrial air moving needs. With its airfoil wheel and square housing design, the SQA is efficient, economical, and versatile. It is also quickly available through Chicago's Quick Ship Fan program. "Packaged" fans, those furnished with motor, V-belt drive, belt guard, and other options, are factory aligned, run tested, and shipped ready to install. By eliminating job site assembly, the packaged SQA fan can substantially reduce overall installation costs.

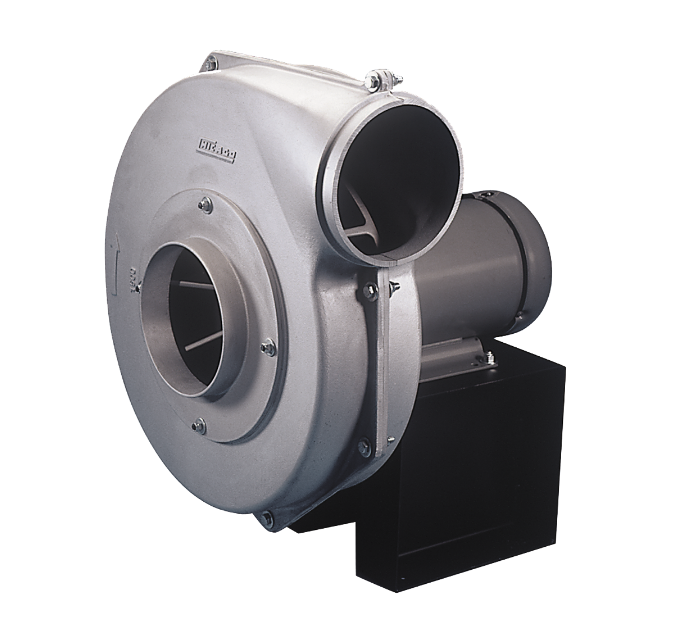

Pressure Blower D38 Cast Aluminum
Chicago castings blend aluminum with high-strength alloys to create strong, corrosion-free housings and wheels ideal for adverse industrial environments. Aluminum also stands up to sub-zero ambients without material deterioration. Since aluminum is non-magnetic and non-toxic, Chicago's cast aluminum pressure blowers are recommended for both electronic and food related applications. The non-sparking properties qualify Chicago's cast aluminum pressure blowers for AMCA spark resistant construction, earning an AMCA Type B spark resistant rating.
Packaged Forced Draft (PDF 4)
Initially developed 30 years ago for packaged boiler systems, Chicago's Packaged Forced Draft fan has earned a reputation as the industry standard. The PFD is a compact, direct-connected, airfoil-bladed fan offering exceptional reliability. To afford the highest efficiencies throughout the performance range, there are three wheel diameters available for each fan size. Fan and wheel width can also be varied to obtain maximum performance. For systems design versatility, seven standard discharge positions can be specified in each rotation.

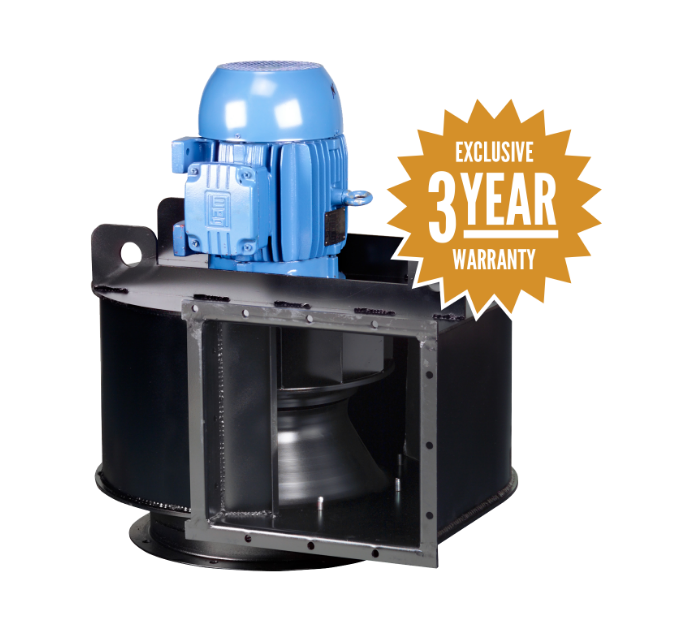

Backward Inclined PBI Packaged Fans
Chicago’s Packaged Backward Inclined Fan is the right choice for your requirements, designed to increase the stable operating range by over 20%. This enables you to offer a wider performance range and thereby eliminate fan sizes. Chicago’s Design 64 PBI fan is offered in 12 sizes from 122 to 365 and in standard widths of 100%, 75% and 50%. With the availability of three motor RPMs, a PBI fan will meet all your necessary performance and physical specifications.
Pressure Blower D53 Single Stage
An extremely wide performance range is provided by 70 wheel/housing combinations. The Design 53 Single Stage Pressure Blower is available in four arrangements and eight discharge positions to suit most every application. In addition to direct drive, the Design 53 is also available in belt drive.
OEM Fan Components Parts
Single Width Airfoil Fan Kits: Wheels, housings, inlet cones, and inlet vane controls are available for packaged equipment. Select from airfoil or backward inclined blades. Volumes to 70,000 CFM.
Double Width Airfoil Fan Kits: Wheels, housings, inlet cones, and inlet vane controls are available for packaged equipment. Select from airfoil or backward inclined blades. Volumes to 100,000 CFM.
Packaged Forced Draft Components: Many OEM systems are supplied with individual PFD components built into the equipment. Wheels, inlet volume controls, inlet cones, and housings are standard component parts available for customer installation.
