Hartzell Air Movement Fans
Series 02 & 09 Panel Fan
Hartzell’s Panel Fans are rugged and versatile. These fans are ideal for general ventilation, smoke and fume removal, cooling, air supply, or exhaust applications. All AMCA Certified for Air Performance, each unit is designed for quiet operation.
Series 61 Direct Upblast Roof Ventilator
The Series 61 Direct Drive Upblast Roof Ventilator meets the need for an economical, yet efficient upblast roof ventilator. The unit combines the Hartzell panel fan concept with a windband and butterfly damper. Dampers open automatically when the fan goes on and close weathertight when the fan is shut down. When the unit is in operation, the force of the discharge air effectively prevents the entry of rain or snow.

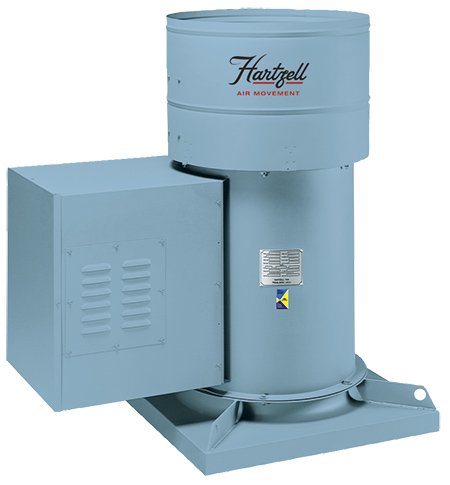

Series 69 Upblast Belt Drive Roof Ventilator
Choose Hartzell’s Series 69 Upblast Belt Drive Roof Ventilator as a quiet, economical alternative to direct drive exhaust fans for commercial and industrial roof ventilation. Its exterior motor mounting places the motor and belts out of the airstream, making the unit ideal for handling tempered air, smoke, dust and fumes.
Series 69S Swingout Upblast Roof Ventilator
Swingout construction provides easy, safe access to internal fan components for inspection, cleaning, maintenance or repair without removing the entire fan assembly or having personnel working directly over the roof opening.
The fan housing is split and swings out from the assembly on a heavy-duty hinge. The fan motor, propeller, drive shaft, bearings and drive components all swing out for easy access.
Series 46 Duct Axial Fan
Duct Axial fans features a six-blade, cast aluminum, airfoil propeller mounted with split-taperlock bushing and a safety retainer plate for easy installation and removal. The one-piece housing is constructed of heavy-gauge, hot-rolled steel with a continuously welded steel drum and flanges. The propellers are designed with higher hub-to-tip ratios, minimizing the backflow of air at higher pressures. They also incorporate a propeller design that does not include a stall characteristic. This allows the unit to respond to changing system characteristics without experiencing stall, vibration, and destructive consequences.
Also available in fiberglass design with the Series 35.
Series 41 Fiberglass Backward Curved Centrifugal Fan
The Series 41 Fiberglass Backward Curved Centrifugal Fan offers non-overloading horsepower characteristics, high efficiency, low noise and economy for corrosive atmospheres. The Series 41P Fan has the same airstream components as the Series 41 fan, in a compact packaged Class II design. The Series 41U Fan is a utility set version of the Series 41, with the motor mounted inside the drive base. It is available in SWSI (single width single inlet) only. Series 41P fan housings are constructed of vinyl ester resin and glass fiber with flame-retardant additives, and all fiberglass surfaces are protected with chemical-, flame- and ultraviolet-resistant resin.
Also available in steel design with the Series 3
